718/1060- MPB - Tá imthacaí liathróid teagmhála uilleach ar fáil i stoc
Forbhreathnú
Sraith Aonair 718 ...- Sraith MPB le Cage Práis MPB-Solid, Fáinne Inmheánach Treoraithe; Tá neart maith agus friotaíocht teasa ag an gcaighean práis seo ar féidir leis an struchtúr imthacaí a choinneáil seasmhach ag luas ard agus a chur in oiriúint don teas a ghintear ag an imthaca ag luas ard. Gan séala; D'fhéadfaí an t -imthacaí seo a úsáid ag teochtaí oibriúcháin ó –30 céim go céim +200 (a chobhsú trí chéim a chobhsú suas le 200 céim). Gnáthrang lamháltais PN; Níorbh fhéidir ualaí aiseach gathacha agus aontreoch a sheasamh, tá an cineál imthacaí gan ramhar.
Trastomhas bore {{{0}} mm; Trastomhas seachtrach -1280 mm; leithead {-100 mm; Mais {-258 kg; cr {{=970 kN;
Sonraíochtaí Sonraíochtaí
| Toisí & Bileoga Sonraí Teicniúla | |
| Cuid uimh. | 718/} |
| Branda | Branda fag déanta sa Ghearmáin/branda SDVV a rinneadh sa tSín |

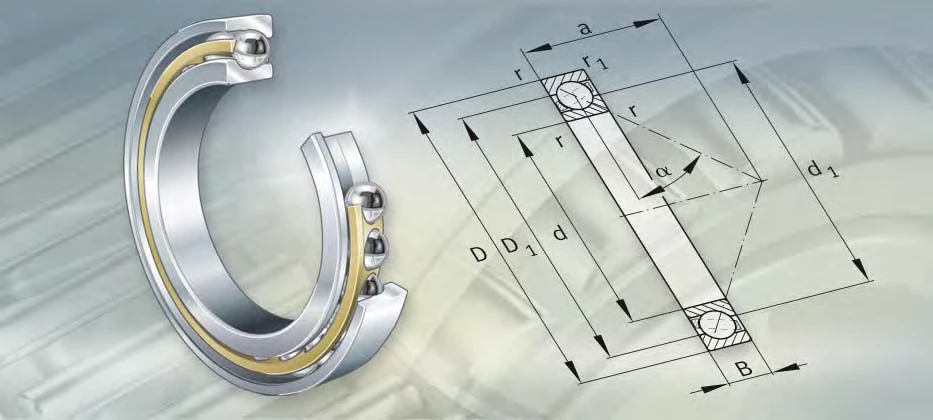

| Príomhthoisí | 1060x1280x100 mm |
| d | 1060 mm |
| D | 1280 mm |
| B | 100 mm |
| Rmin | 6 mm |
| D1 | 1198.2 mm |
| TEAGMHÁIL TEAGMHÁIL | 30 céim |
| da min. | 1083 mm |
| Da max. | 1257 mm |
| Ra max. | 5 mm |
| Cc | 970 kN |
| C0r | 3050 KN |
| M | 258 kg |
cuid de stoc -stoc a bheith agat le haghaidh do chuid réiteach níos mó
| 7000 RC BDB DF BDF DT BDT CDT | 10x26x8 |
| 7001 BC BDB DF BDF DT BDT CDT | 12x28x8 |
| 7002 BC BDB DF BDF DT BDT CDT | 15x32x9 |
| 7003 BC BDB DF BDF DT BDT CDT | 17x35x10 |
| 7004 BC BDB DF BDF DT BDT CDT | 20x42x12 |
| 7005 BC BDB DF BDF DT BDT CDT | 25x47x12 |
| 7006 BC BDB DF BDF DT BDT CDT | 30x55x13 |
| 7007 BC BDB DF BDF DT BDT CDT | 35x62x14 |
| 7008 BC BDB DF BDF DT BDT CDT | 40x68x15 |
| 7009 BC BDB DF BDF DT BDT CDT | 45x75x16 |
| 7010 BC BDB DF BDF DT BDT CDT | 50x80x16 |
| 7011 BC BDB DF BDF DT BDT CDT | 55x90x18 |
| 7012 BC BDB DF BDF DT BDT CDT | 60x95x18 |
| 7013 BC BDB DF BDF DT BDT CDT | 65x100x18 |
| 7014 BC BDB DF BDF DT BDT CDT | 70x110x20 |
| 7015 BC BDB DF BDF DT BDT CDT | 75x115x20 |
| 7016 BC BDB DF BDF DT BDT CDT | 80x125x22 |
| 7017 BC BDB DF BDF DT BDT CDT | 85x130x22 |
| 7018 BC BDB DF BDF DT BDT CDT | 90x140x24 |
| 7019 BC BDB DF BDF DT BDT CDT | 95x145x24 |
| 7020 BC BDB DF BDF DT BDT CDT | 100x150x24 |
| 7021 BC BDB DF BDF DT BDT CDT | 105x160x26 |
| 7022 BC BDB DF BDF DT BDT CDT | 110x170x28 |
| 7024 BC BDB DF BDF DT BDT CDT | 120x180x28 |
| 7026 BC BDB DF BDF DT BDT CDT | 130x200x33 |
| 7200 BC BDB DF BDF DT BDT CDT | 10x30x9 |
| 7201 BC BDB DF BDF DT BDT CDT | 12x32x10 |
| 7202 BC BDB DF BDF DT BDT CDT | 15x35x11 |
| 7203 BC BDB DF BDF DT BDT CDT | 17x40x12 |
| 7204 BC BDB DF BDF DT BDT CDT | 20x47x14 |
| 7205 BC BDB DF BDF DT BDT CDT | 25x52x15 |
| 7206 BC BDB DF BDF DT BDT CDT | 30x62x16 |
| 7207 BC BDB DF BDF DT BDT CDT | 35x72x17 |
| 7208 BC BDB DF BDF DT BDT CDT | 40x80x18 |
| 7209 BC BDB DF BDF DT BDT CDT | 45x85x19 |
| 7210 BC BDB DF BDF DT BDT CDT | 50x90x20 |
| 7211 BC BDB DF BDF DT BDT CDT | 55x100x21 |
| 7212 BC BDB DF BDF DT BDT CDT | 60x110x22 |
| 7213 BC BDB DF BDF DT BDT CDT | 65x120x23 |
| 7214 BC BDB DF BDF DT BDT CDT | 70x125x24 |
| 7215 BC BDB DF BDF DT BDT CDT | 75x130x25 |
| 7216 BC BDB DF BDF DT BDT CDT | 80x140x26 |
| 7217 BC BDB DF BDF DT BDT CDT | 85x150x28 |
| 7218 BC BDB DF BDF DT BDT CDT | 90x160x30 |
| 7219 BC BDB DF BDF DT BDT CDT | 95x170x32 |
| 7220 BC BDB DF BDF DT BDT CDT | 100x180x34 |
| 7221 BC BDB DF BDF DT BDT CDT | 105x190x36 |
| 7222 BC BDB DF BDF DT BDT CDT | 110x200x38 |
| 7224 BC BDB DF BDF DT BDT CDT | 120x215x40 |
| 7226 BC BDB DF BDF DT BDT CDT | 130x230x40 |
| 7300 BC BDB DF BDF DT BDT CDT | 10x35x11 |
| 7301 BC BDB DF BDF DT BDT CDT | 12x37x12 |
| 7302 BC BDB DF BDF DT BDT CDT | 15x42x13 |
| 7303 BC BDB DF BDF DT BDT CDT | 17x47x14 |
| 7304 BC BDB DF BDF DT BDT CDT | 20x52x15 |
| 7305 BC BDB DF BDF DT BDT CDT | 25x62x17 |
| 7306 BC BDB DF BDF DT BDT CDT | 30x72x19 |
| 7307 BC BDB DF BDF DT BDT CDT | 35x80x21 |
| 7308 BC BDB DF BDF DT BDT CDT | 40x90x23 |
| 7309 BC BDB DF BDF DT BDT CDT | 45x100x25 |
| 7310 BC BDB DF BDF DT BDT CDT | 50x110x27 |
| 7311 BC BDB DF BDF DT BDT CDT | 55x120x29 |
| 7312 BC BDB DF BDF DT BDT CDT | 60x130x31 |
| 7313 BC BDB DF BDF DT BDT CDT | 65x140x33 |
| 7314 BC BDB DF BDF DT BDT CDT | 70x150x35 |
| 7315 BC BDB DF BDF DT BDT CDT | 75x160x37 |
| 7316 BC BDB DF BDF DT BDT CDT | 80x170x39 |
| 7317 BC BDB DF BDF DT BDT CDT | 85x180x41 |
| 7318 BC BDB DF BDF DT BDT CDT | 90x190x43 |
| 7319 BC BDB DF BDF DT BDT CDT | 95x200x45 |
| 7320 BC BDB DF BDF DT BDT CDT | 100x215x47 |
| 7321 BC BDB DF BDF DT BDT CDT | 105x225x49 |
| 7322 BC BDB DF BDF DT BDT CDT | 110x240x50 |
| 7324 BC BDB DF BDF DT BDT CDT | 120x260x55 |
| 7326 BC BDB DF BDF DT BDT CDT | 130x280x58 |
